Description

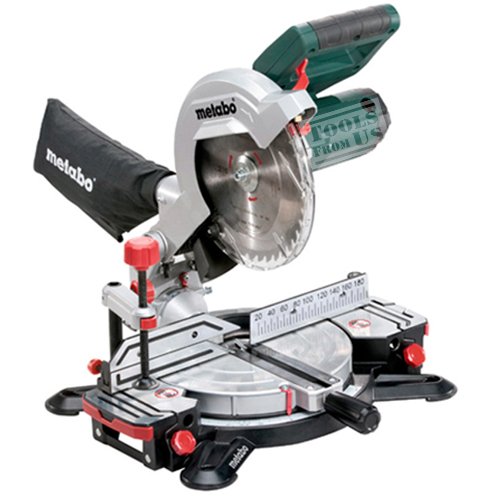

- Compact crosscut and mitre saw of the mobile M-class – light, precise, user-friendly
- Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
- Turntable with fast, precise setting of common angles using stop points
- Saw blade inclination from -2 to 47°, therefore also suited for undercuts
- Robust die-cast aluminium design for the highest demands
- Effective dust extraction via integrated dust scoop
- Extendable table width extensions, also removable to put underneath extremely long work pieces
- Quick-action clamp for secure fixing of the work piece from the top or front
- All scales and operating elements are visible from the working position and can be operated intuitively
- Ergonomic handle areas for carrying with one or two hands.
- Dimensions: 477 x 464 x 479 mm / 18.8 x 18.2 x 18.8 “
- Support surface: 155 x 725 mm / 6.1 x 28.54 ” mm
- Maximum cutting width 90°/45°: 120 / 80 mm / 4.687 / 3 1/8 “
- Maximum cutting depth at 90°/45°: 60 / 45 mm / 2 3/8 / 1 3/4 “
- Cutting capacity 90°/90°: 120 x 60 mm / 4 11/16 x 2 3/8 “
- Cutting capacity 45°/45°: 80 x 45 mm / 3.1625 x 1 3/4 “
- Turntable setting left/right: 47 / 47 °
- Saw blade tilt left/right: 47 / 2 °
- Saw blade: 216 x 30 mm / 8 1/2 x 1.181 “
- Rated input power: 1100 W
- Rated input power S1 100%: 1100 W
- Rated input power S6 20%: 1350 W
- No-load speed: 5000 rpm
- Speed at rated load: 3800 rpm
- Cutting speed: 57 m/s / 187 ft/min
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 48 × 47 × 48 cm |
| Brand | METABO |
