Description
Specification

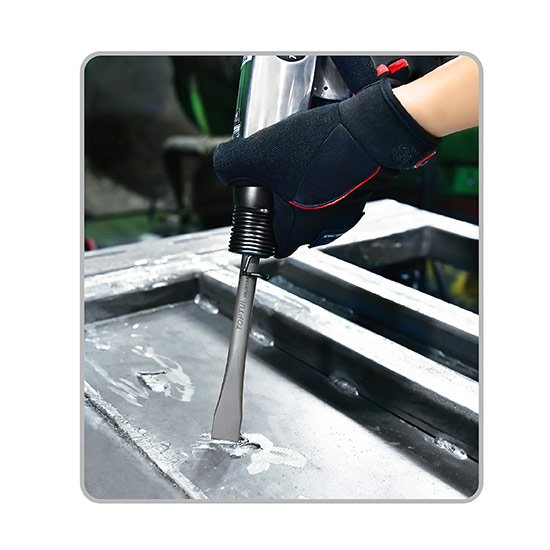

Heavy Duty Air Impact Hammer
- Pressure die cast aluminum alloy body with hardened tool steel impact mechanism
- Close tolerance of internal parts provides high torque performance and low air consumption
- Medium-barrel hammer design with pistol grip handle
- Front exhaust
| ITEM NO. | KAHA3217 |
| SPECIFICASTIONS | |
| Blow Per Minute | 3200 BPM |
| Piston Stroke | 67 mm (2-5/8″) |
| Chisel Shank Opening (Hex) | 10 mm |
| Overall Length | 171 mm (6-3/4″ |
| Net Weight | 1.6 kg (3.5 lbs) |
| Air Inlet | 1/4″ PT |
| Air Hose | 3/8″ ID |
| Air Pressure | 90 PSI / 6.2 BAR |
| Average Air Consumption | 10 CFM (283 l/min) |
| Sound Pressure Level | 99.8 DBA |
| Sound Power Level | 110.6 DBA |
| Vibration Level | 5.1 M/Sec² |
