Description
- Optional Power Supply: 110V (1PH) /220V (1/3PH) / 380V (3PH)
- Optional Motor Power: 0.20/0.37 KW
- Balanc6ing Speed: 200 RPM
- Balancing accuracy: ±1 g (± 0.04 oz)
- Measuring Time: 8 s
- 9 Balancing Modes
- Opt Function
- Maximum Wheel Weight: 65 Kg (143 lbs.)
- Rim Width: 40-510 mm (1.5″ – 20″)
- Rim Diameter: 252-610 mm (10-24″)
FEATURES:

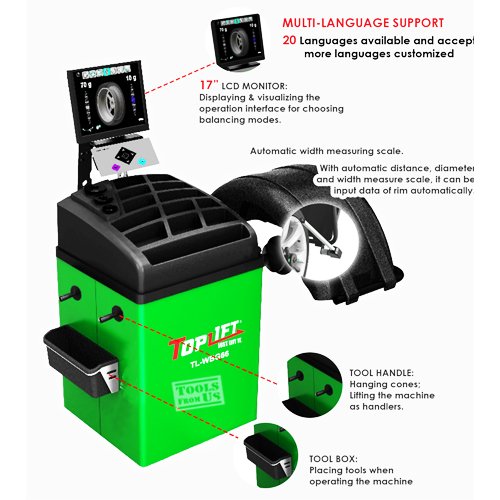

- Multi Language Support -20 Languages available and accept more languages customized
- 17″ LCD Monitor: Displaying & Visualizing the operation interface for choosing balancing modes
- Automatic width measuring scales
- With automatic distance diameter and width measure scale. It can be input data of rim automatically
- Tool Handle: Hanging cones; Lifting the machines as handlers
- Toolbox: Placing tools when operating the machine.
STANDARD CONFIGURATION:
- Automatic Disc Brake and Laser Pointer
- Automatic main shaft lock is used to retain wheel in the correct position
- Point out the imbalancing place with laser automatically
- LED Lighting: Equipped LED to luminate the weight position indicator.
3D ANIMATION INTERFACE
- New patented software system
- More user friendly deign interface
- Easy to use button design with quick and understandable symbols to increase operation speed
- Increasing precision in software utilization
Additional information
| Weight | 123 kg |
|---|---|
| Dimensions | 97 × 77 × 126 cm |
| Brand | TOPLIFT |
